SPECIFICATIONS

Brand Name: NONE

Choice: yes

High-concerned chemical: None

Material: Aluminum

Model Number: 38mm Wastegate

OEM NO.: 38mm Wastegate

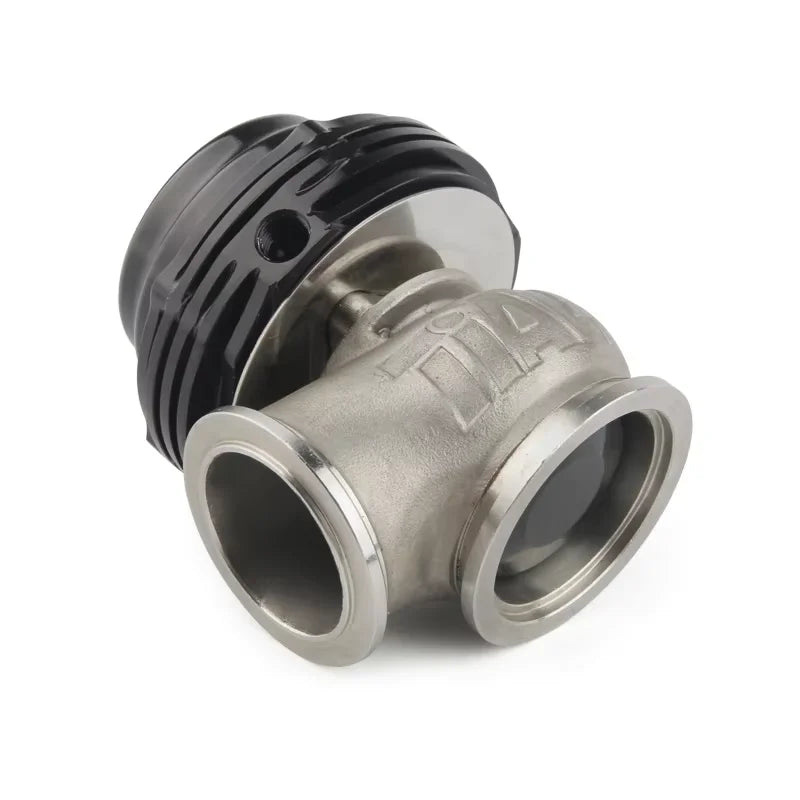

Universal 38mm External Wastegate V-Band Flanged Turbo Waste Gate For Supercharge Turbo Manifold MV-S 38mm Wastegate

Application:

• Universal. Fit any 38mm turbo manifold wastegate port.

Specification:

• 100% quality assurance tested, more responsive, less expensive, easier to install.

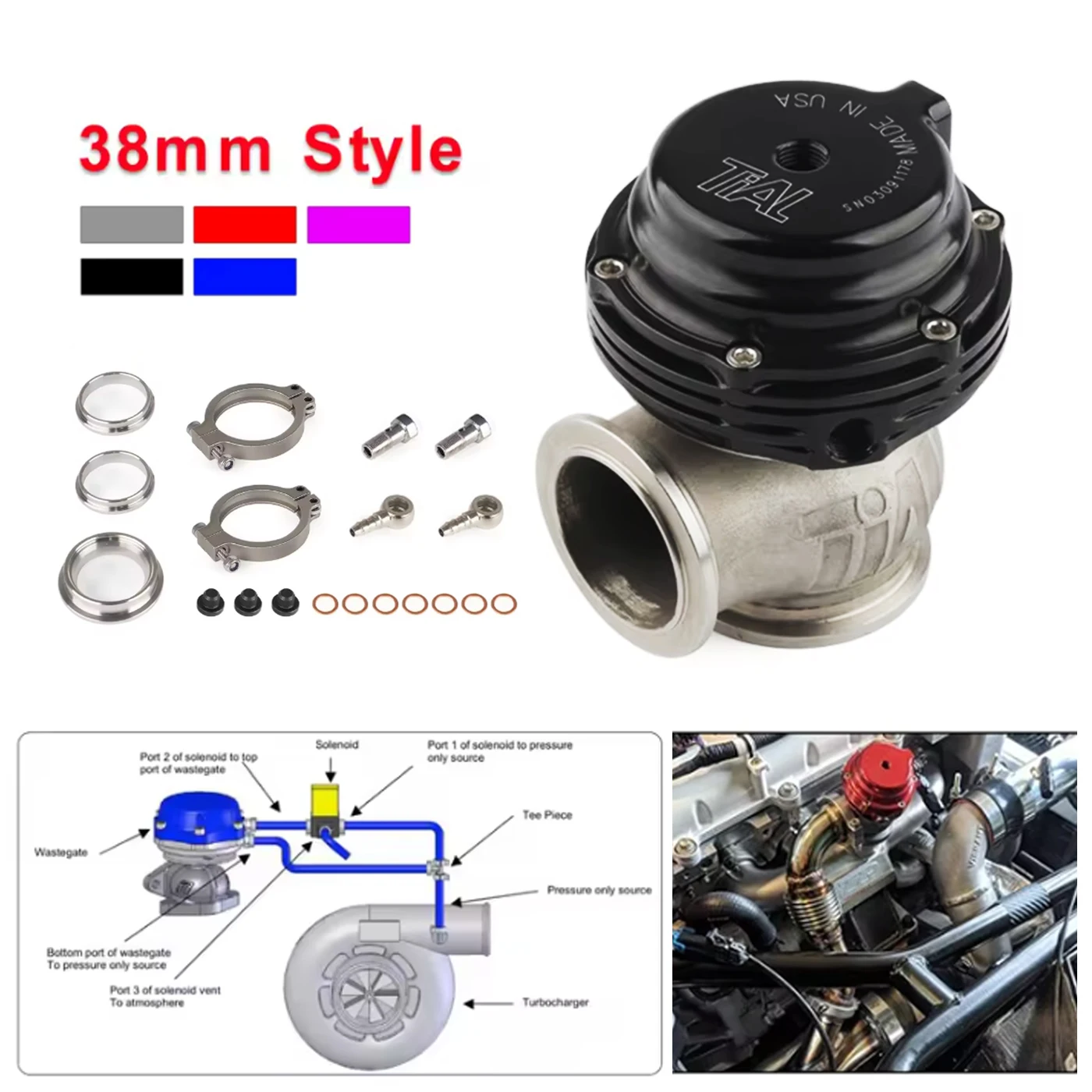

• The V-Band flanges make installation pain free, the three lower & two upper air ports make connecting pressure sources and boost controllers easy.

• Stainless Steel actuator spring gives consistent pressure at high temperature, resist ''relaxing'' at temperature to 900F (483C).

• Ultra compact design fits in very tight spaces, the unit stands only 3.8'' tall, more compact than any other external wastegate on the market today.

• Wastegates provide a means to control the boost pressure of the turbo charged engine. Wastegates work to bypass exhaust flow from the turbine wheel.

• Bypassing the exhaust flow reduces the power driving the turbine wheel to match the power required for a given boost level. Similar to the BOV, the Wastegates uses boost pressure and spring force to regulate the flow bypassing the turbine.

• Bbolted to exhaust manifold or header, the advantage of external Wastegates is that the bypassed flow can be reintroduced into the exhaust stream further downstream of the turbine.

• This tends to improve the turbine's performance.

• Inlet Flange: 1.75'' OD, Outlet Flange: 1.50'' OD.

• Air Ports (5): M10 x 1.0.

• Psi of Spring: 17 & 20.(Dear you can use both of them to get 37 as you need)


Package Included:

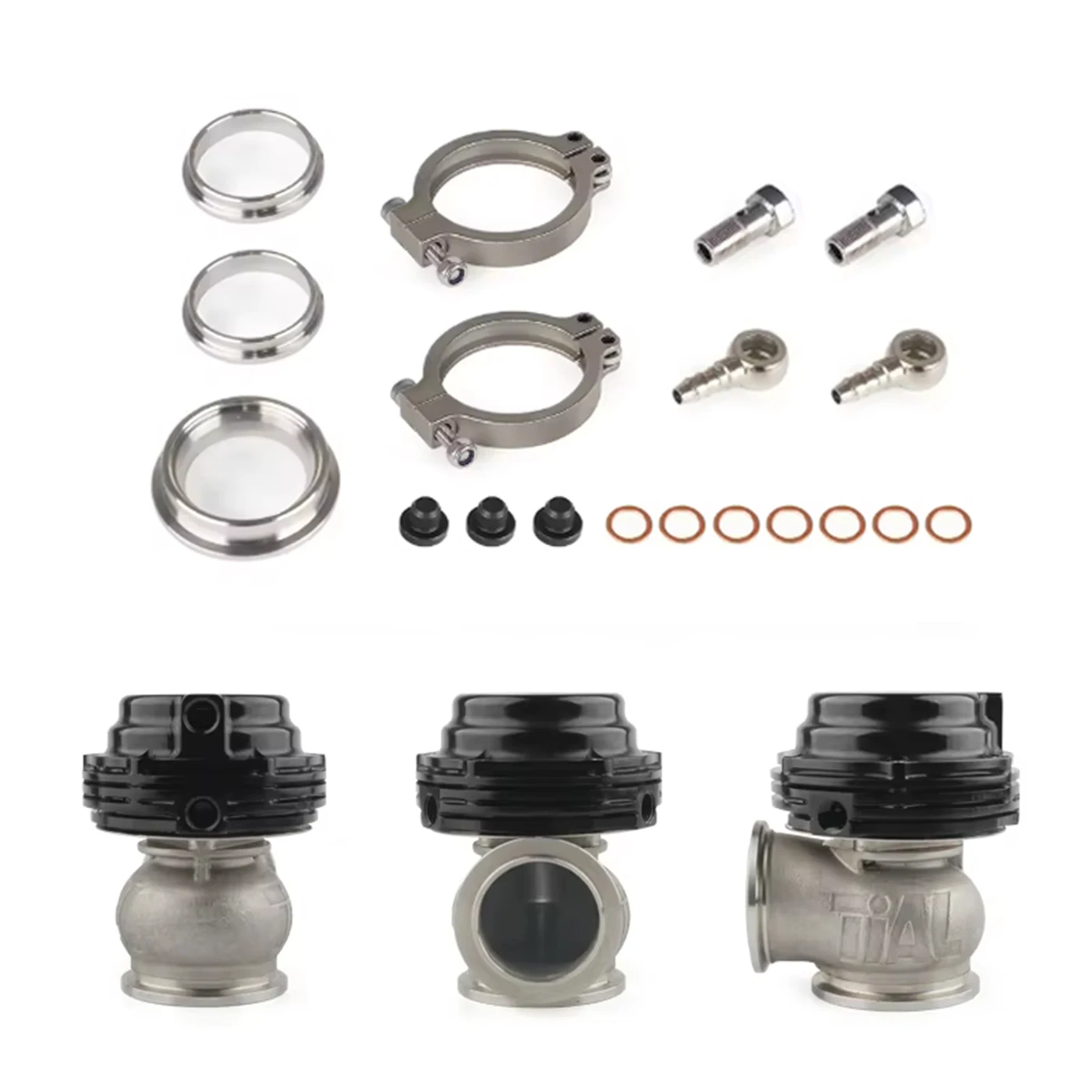

• 1x Wastegate Kit. (100% Brand New Never Used Or Installed)

Note:

• Provide Tracking Number With Every Order, Please Buy With Confidence!

• No installation guides are included, we highly recommend to seek professional installation. Any damage during installation will not be refunded.

• Will come with everything you see in the picture. Please allow difference due to manual measurement.

• Please check that the picture matches before purchase. The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.

• For any inquiries or special requests such as larger amount ordering please write to us.
