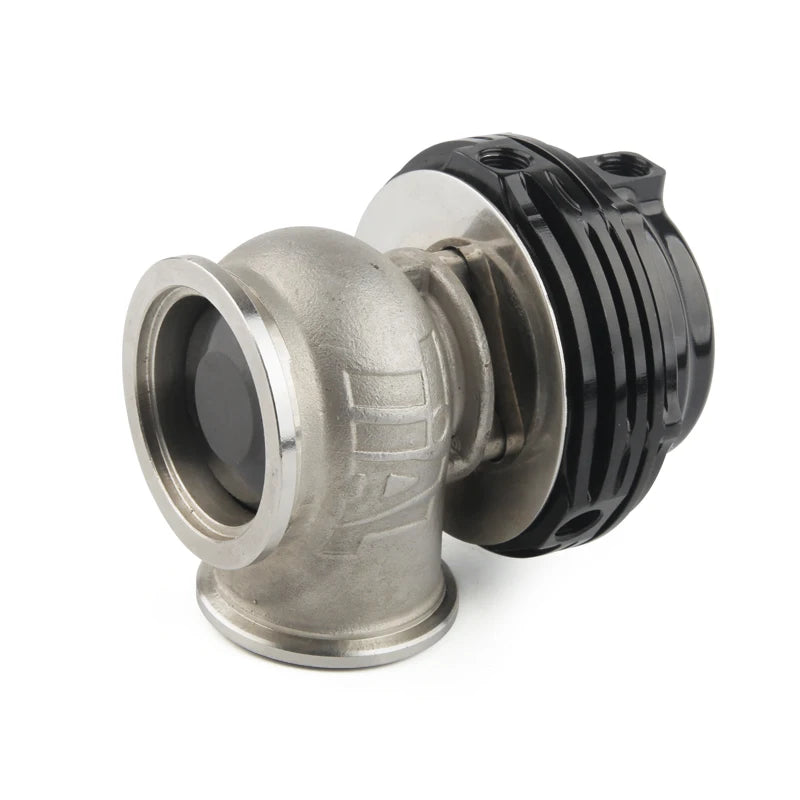

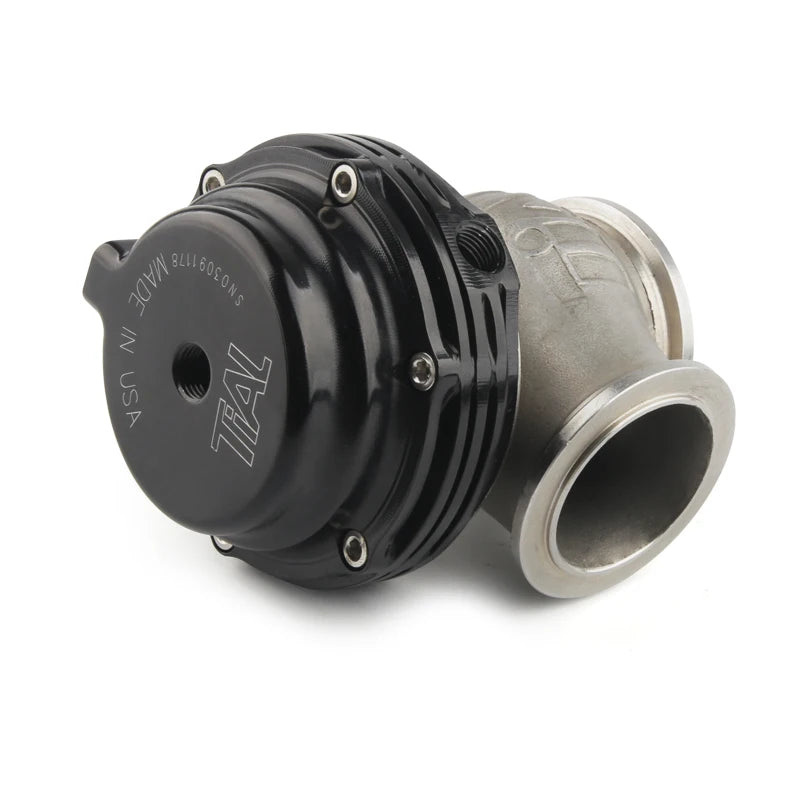

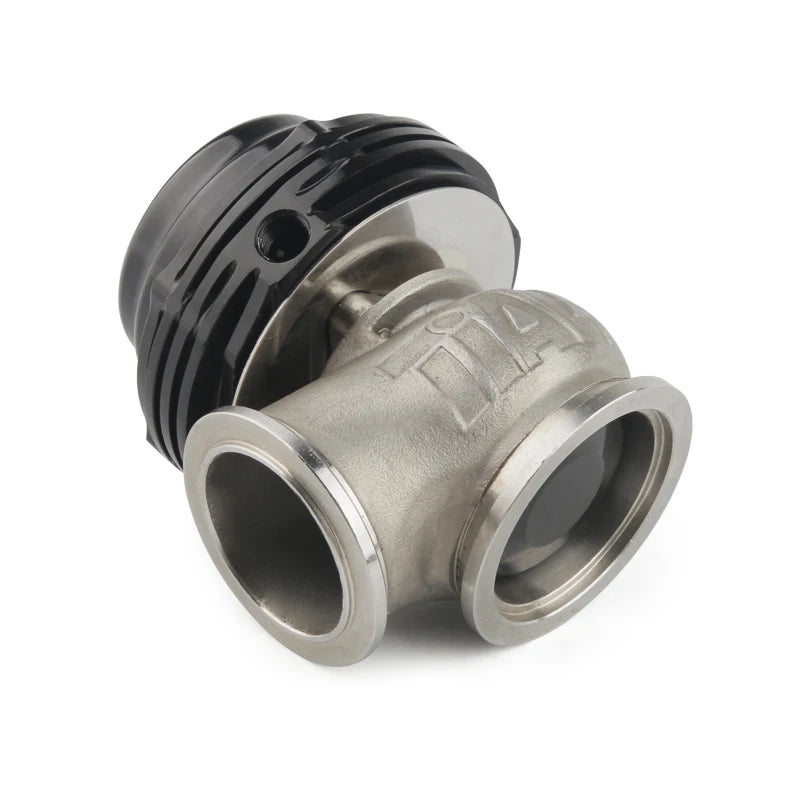

Tial 44mm Wastegate Top Steel V-band External Waste Gate For Supercharge Turbo Manifold
Tial 44mm Wastegate Top Steel V-band External Waste Gate For Supercharge Turbo Manifold
SPECIFICATIONS
Brand Name: Jkdreamercar
Displacement: universal
External Testing Certification: iso9001
High-concerned chemical: None
Item Diameter: 0
Item Height: 0
Item Length: 0
Item Type: Turbo,Valve Train
Item Weight: 2
Item Width: 0
Material: aluminum
Model Name: WASTEGATE 44MM
No. of Cylinders: all
Product Type: Engine Accessories
Special Features: 44MM WASTEGATE
Year: universal
Application:
-
Universal.
Features and Benefits:
-
Wastegates provide a means to control the boost pressure of the turbo charged engine. Wastegates work to bypass exhaust flow from the turbine wheel.
-
Bypassing the exhaust flow reduces the power driving the turbine wheel to match the power required for a given boost level. Similar to the BOV, the Wastegates uses boost pressure and spring force to regulate the flow bypassing the turbine.
-

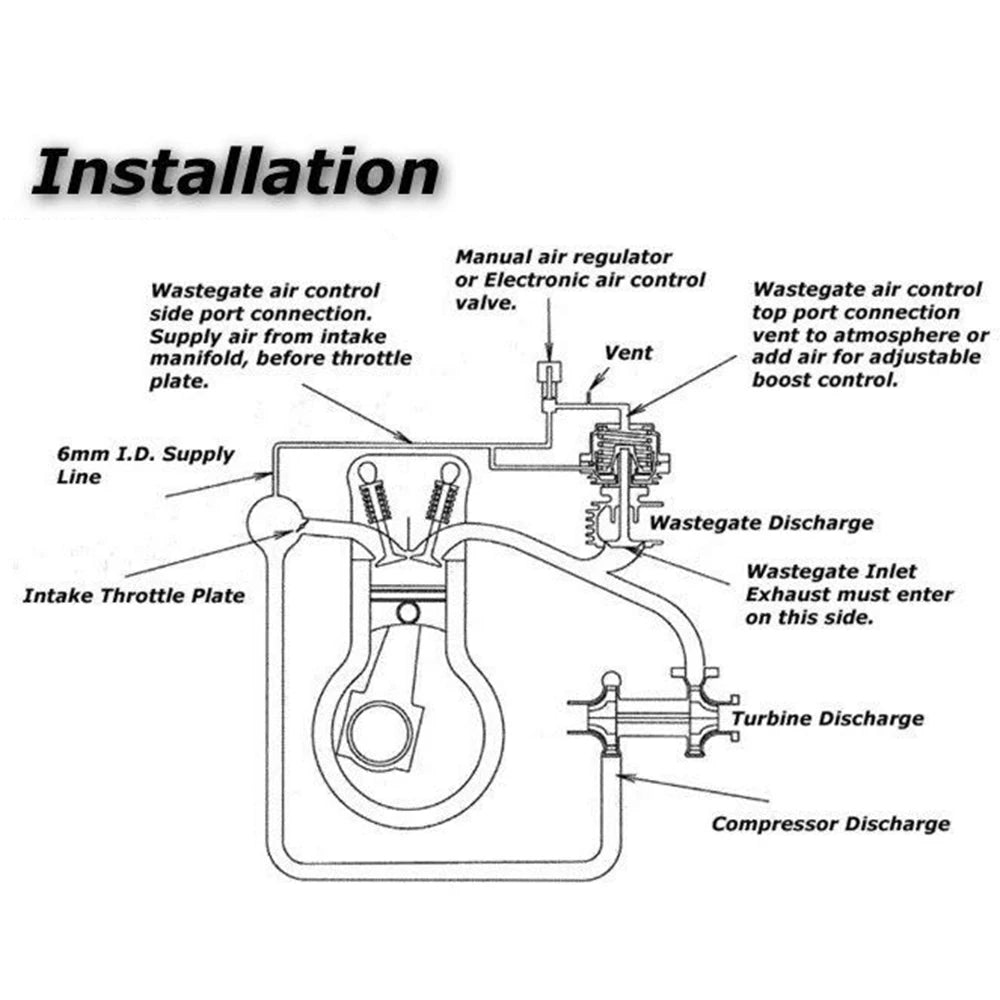

Wastegates are bolted to exhaust manifold or header. The advantage of external Wastegates is that the bypassed flow can be reintroduced into the exhaust stream further downstream of the turbine.
-
This tends to improve the turbine's performance.
Dimensions& Material:
-
Size: 44mm
-
Made of high quality Aluminium.
-

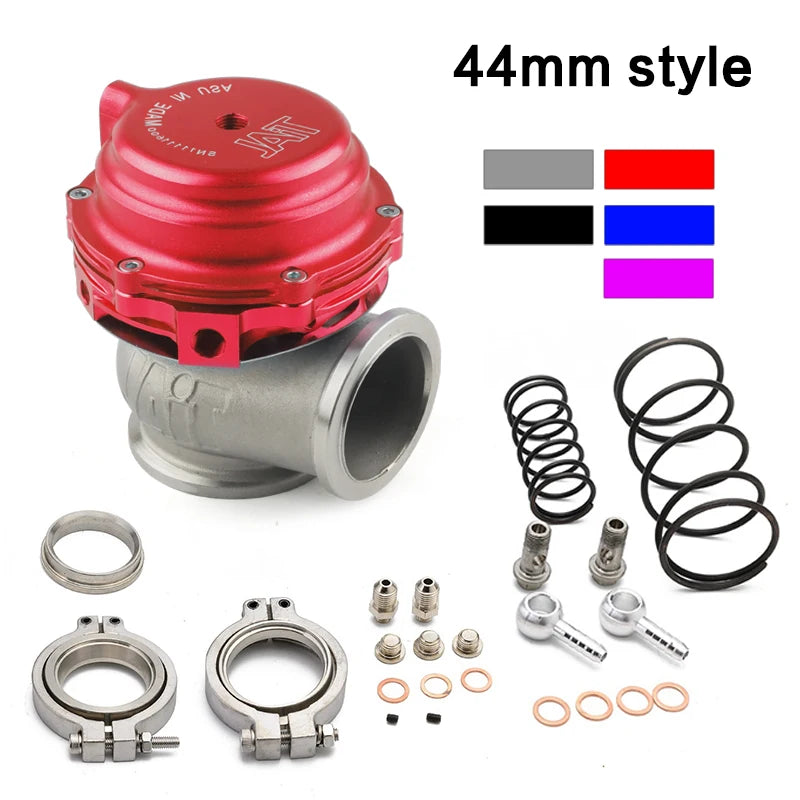

Color: BLUE,BLACK,RED.
-

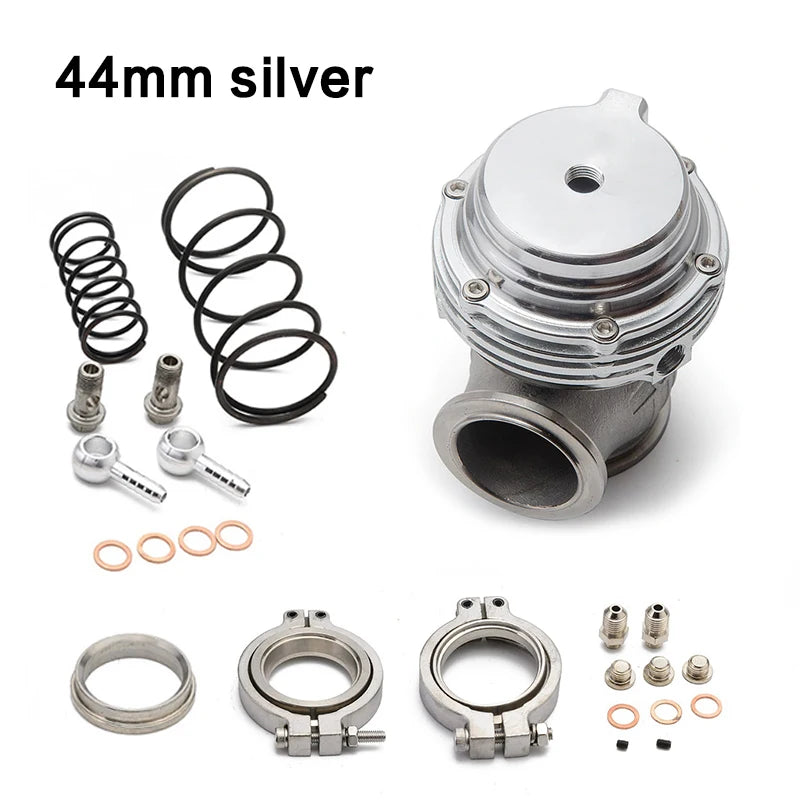

Factory installed spring is 14 psi , and come 2 springs 7&17psi for spare parts
Package Included:
-
1x Wastegate.
-
Accessories. (100% Brand New Never Used Or Installed)
